FSDC Pallet Inverter
FS DC Pallet Inverter
Man loading FSDC Pallet inverter
Highly versatile free standing FS DC 180° inverter with dual clamps. The FS DC Inverter can be loaded by forklift truck or at ground level by pallet truck with either ramped access or flush to floor tables. Floor flush tables are ideal for product which can be clamped tightly. All FS DC Inverter machines are painted with two coats of zinc primer and a 2 pack epoxy acrylic top coat as standard. The standard unit handles loads up to 2 metres and down to as low as 600mm in height while the loading capacity is 2000Kgs.
Customised versions of the FS DC Inverter can be supplied with such options as:
  • increased jaw opening and table size
  • pallet grippers to reduce manual handling
  • stainless steel, hot zinc spray or "Steel-It" finish available.
Please View our FSDC Pallet Inverter video on the left.
More About FSDC

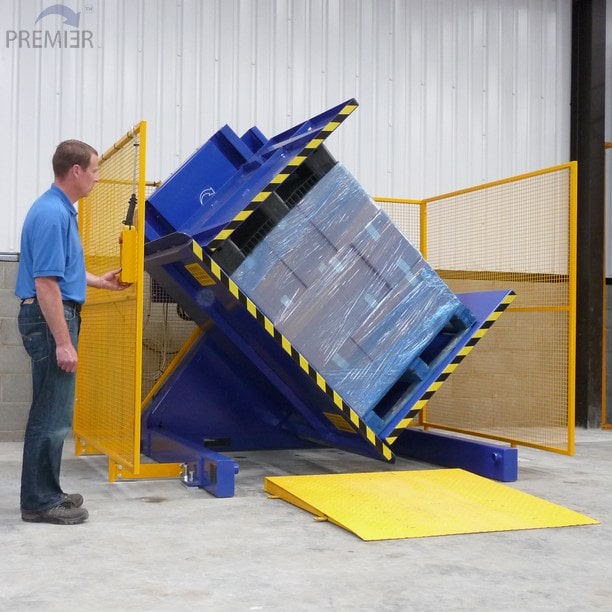

Man operating FSDC behind cage
The FS DC is the most versatile model in Premier's range. It can load by FLT or at ground level by pallet truck and can handle loads from 600mm to 2 metres in height. The "DC" stands for dual clamp. Its strong construction combined with a 2000 kgs capacity make it suitable for the harshest environments. It is a machine that will run and run in the busiest warehouse or coldstore despite the most abusive treatment. Although it will operate perfectly well without special installation, the FS DC is normally anchored to the floor. Basic guarding is included in the package though many customers opt for a floor-fixed cage with photo-electric guarding at the front. Like the FS, the FS DC will transfer almost any kind of product from pallet to pallet. It is equally at home with sacks of food ingredients, piles of paper, tinned goods or boxes of crisps. Machines are always held in stock at Premier's Norfolk factory and are also available to rent or trial on site.

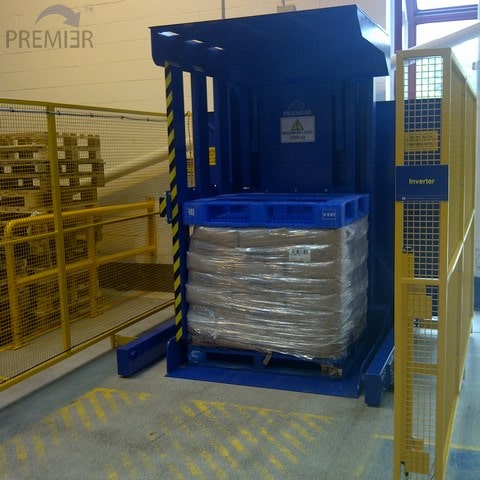

Close up of fsdc pallet inverter
working fsdc pallet inverter
FSDC SPECIFICATIONS
Usable jaw opening maximum 2.00m
  minimum 0.64m ramp loaded tables
or 0.74m floor flush tables

Increased jaw opening models also available

Load tables 1.30m x 1.30m ramp loaded tables
  1.40m x 1.30m floor flush tables

Normally supplied with 1.20m long loading ramp

Loading capacity 2000 kgs.

Power supply 3ph / 400v/ 20 amp
Motor size 4kW

Weight 2255 kgs
Weight of guards 175 kgs

Controls: Extended individual push button controls with semi or fully auto- sequenced systems available as an option.

Operating space: 2.80m wide x 2.30m deep x 2.48m high inc. attached guards

Depth increases to 3.31m when fitted with floor-fixed guards and multi photo-beams.


Standard shipping dimensions: 2.80m wide x 2.30m deep x 2.20m high with guards fitted.
