Premier Pallet Systems are proud to represent the Danish-built Palomat in the UK. We have a long history with them and in 2013 were proud to be voted Palomat dealer of the year.
There are many benefits to be gained by introducing a Palomat in your warehouse or order-picking operation.

  • Eliminate manual handling of pallets
  • Avoid back, foot and finger injuries that lead to claims and lost time
  • Increase productivity in the workplace
  • Reduce wasted space occupied by short pallet stacks
  • Reduce pallet damage caused by careless handling
  • Aid efficient pallet management
  • Palomat offers integrated conveyor fed options

Click on range below to visit palletstacker.co.uk

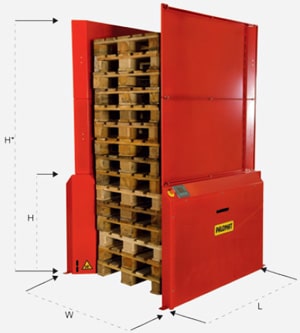

Greenline Pallet Stacker
  • No Compressed Air Required
  • Auto stacking AND destacking
  • Allows switching between stacking and destacking
  • Pallet Stacking one at a time
  • Operate by touch panel

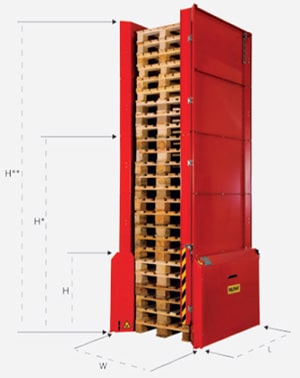

Flexomatic Pallet Stacker
  • Auto stacking OR destacking
  • Allows switching between stacking and destacking
  • Pallet stacking one at a time
  • Operate by touch panel
  • Needs compressed air & electrics

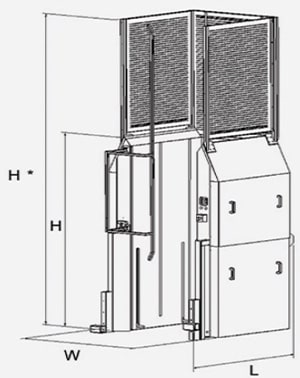

 Pallet Stacker 5
  • Semi-auto stacking & destacking
  • Detects whether stacking or destacking is required.
  • 1 to 5 pallets at a time
  • Operate by push button
  • Needs compressed air & electrics

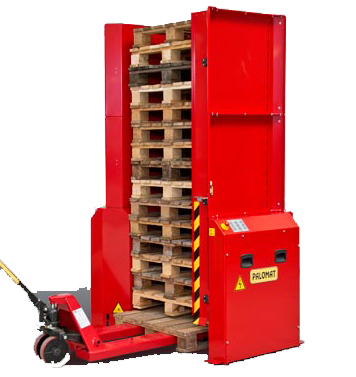

half pallet stacker
  • Full automatic stacking OR destacking
  • For 1/2 Pallets
  • Pallet stacking one at a time
  • Load/Empty at floor level
  • AC only or compressed air + AC
Doulbe Up Stacker
  • Full automatic stacking OR destacking
  • For doubled up pallets
  • Pallet stacking one at a time
  • Load/Empty at floor level
  • AC only or compressed air + AC

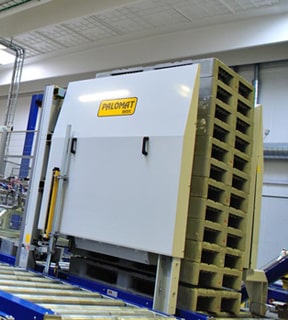

Inline Pallet Stacker
  • Auto stacking OR destacking
  • Placed over all types of conveyors
  • Prepared for PLC control
  • More efficient production line
  • High-tech solution

rental banner

Palomat are among the world's most experienced manufacturers of pallet dispensers with more units manufactured than most other suppliers. With so many produced each year come economies of scale making it the most competitively priced unit on the market.

  • Simple, cost effective stacking and dispensing
  • Various control options, from simple levers to full automation
  • Stainless steel alternative for hygienic areas
  • Palomat 5 stacks/destacks 1 to 5 pallets at a time
The Palomat Offers:
  • Cost effective pallet handling.
  • The 001 Palomat is the most competitively priced system of its kind on the market
  • More systems sold annually than any other manufacturer
  • Flex model switches between stacking and dispensing
  • The Flexomatic is a fully automatic version activated simply by the removal or insertion of the previous pallet.

Request More Details

We are proud to be an award winning Palomat dealer.

TECHNICAL INFORMATION

For full technical details and more information on each pallet stacker/dispenser we can provide please visit our pallet stacker website: www.palletstacker.co.uk

Palomat build a range of machines to handle all standard sized pallets and with 14 or 25 unit capacities. Their basic model is a single function system (stack or dispense) while the most sophisticated machine will dispense up to 5 pallets at a time and can be totally automated. There is also a stainless steel version and an integrated model referred to as the Palomat Basic.

All handling is carried out at floor level.

The PALOMAT 001 detects the pallets via photo sensors after which they are automatically stacked or destacked one by one.

It is not possible to change between the two functions. PALOMAT 001 is used in areas where there is a need for permanent stacking or destacking.

Requirements

Requires both 6-7 bar Compressed Air and 230V Electric supply The user inserts or removes the pallets using a stacking truck or fork lift truck.

Destacking

A stack of no more than 15 to 25 pallets will be inserted in the PALOMAT 001 after which the pallets are automatically destacked one by one.

Stacking

Pallets are inserted one by one, after which the pallets are automatically stacked to no more than 15 to 25 pallets. The entire stack can subsequently be removed.
